E113328 - Offset ring wrench, 20x22 mm
E113328 - Offset ring wrench, 20x22 mm
E113328 - Offset ring wrench, 20x22 mm
E113328 - Offset ring wrench, 20x22 mm
-15%

E113328 - Offset ring wrench, 20x22 mm

  • Symbol: E113328
  • EAN: 3258951133286
  • Expert Expert

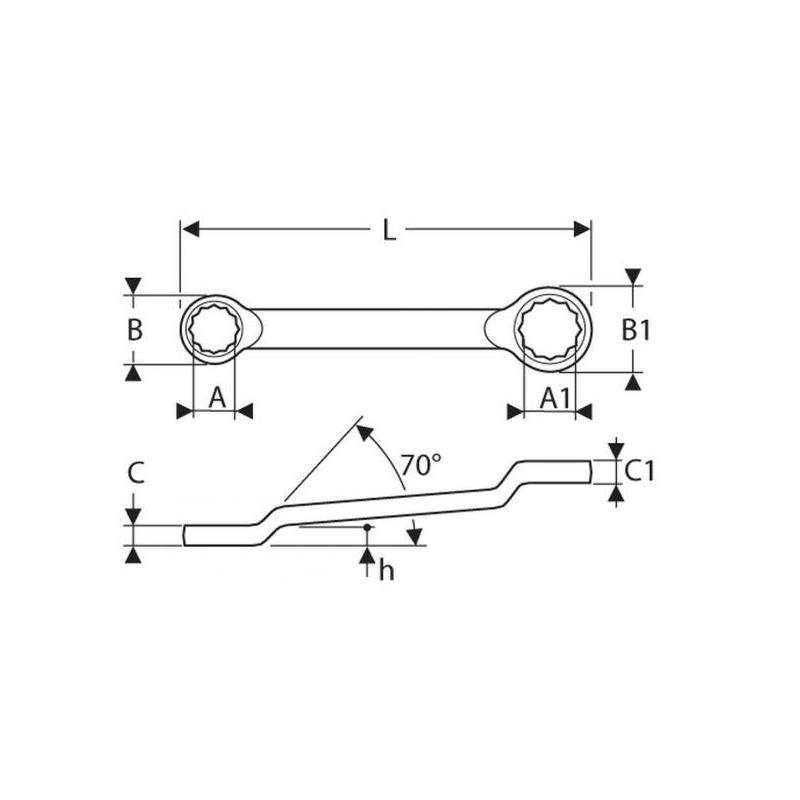

  • A [mm]: 20
  • A1 [mm]: 22
  • B [mm]: 29,7
  • B1 [mm]: 32,5
  • C [mm]: 12,4
  • C1 [mm]: 12,9
  • H1 [mm]: 32,5
  • L [mm]: 288
  • Weight [g]: 315
12 months for all manufacturing flaws and faults
Lead time: approx. 10-12 days
Delivery cost: from 15 PLN net Check out >
55.71 zł 47.35 zł net
(58.24 zł gross)
The lowest price of the product in last 30 days: 47,35 zł
  • ISO 691 - ISO 1711-1 - ISO 3318 - ISO 10104 - DIN 838

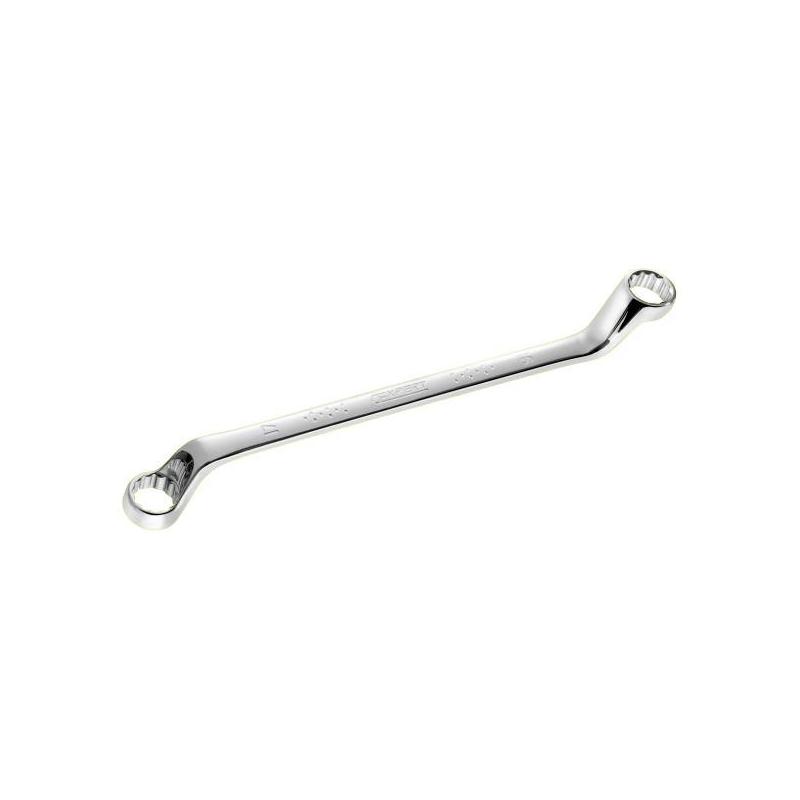

  • 12-point OGV® ring wrenches offset by 70° for better access to recessed nuts.
  • OGV® Ring profile maximizing contact surface with the nut for a longer lifetime.
  • Forged in Chrome Vanadium steel.
  • High chrome finish.
  • Symbol: E113328
  • Rozmiar [mm]: 20.00
  • Rozmiar podwójny: 22.00
  • L [mm]: 288.00
  • Rodzaj: stal chromowo-wanadowa
  • Typ: oczkowe odsadzone
  • Opis: metryczne

Download

expert_e13_pl.pdf expert_e13_pl.pdf (65.46KB)
