  • Symbol: E110106
  • EAN: 3258951101063
  • Expert Expert

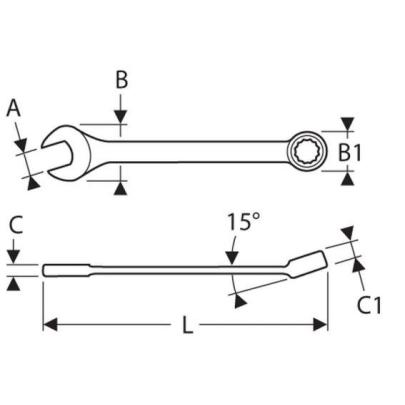

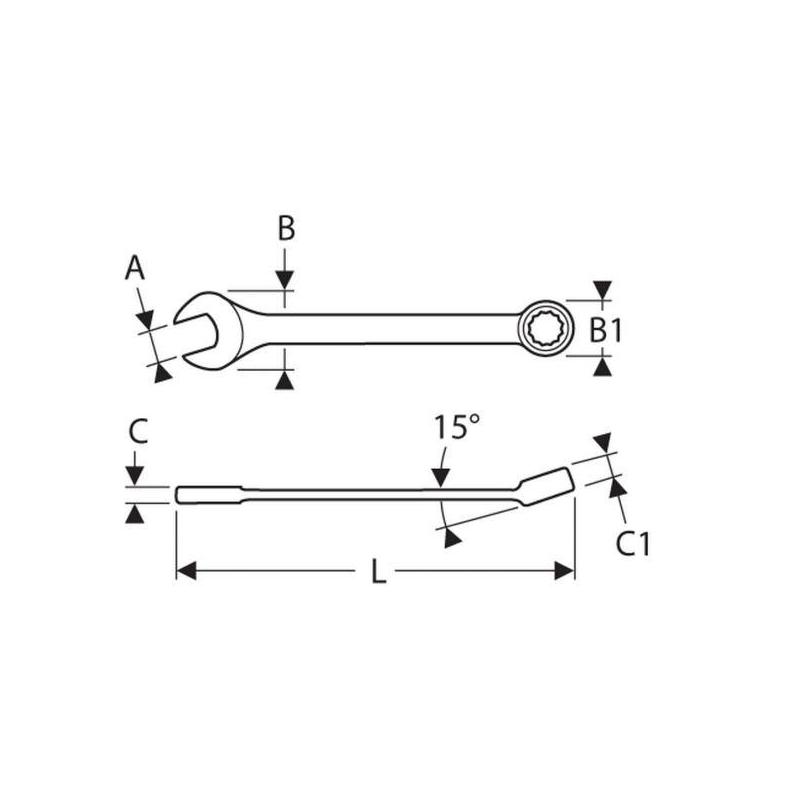

  • A [mm]: 8
  • B [mm]: 20,9
  • B1 [mm]: 14,8
  • C [mm]: 5,4
  • C1 [mm]: 6,6
  • L [mm]: 96
  • Weight [g]: 25
Delivery cost: from 15 PLN net Check out >
Ask for product
  • ISO 691 - ISO 1711-1 - ISO 3318 - ISO 7738 - DIN 3113- 12-point OGV® ring angled at 15°.
  • Open end angled at 15° from the handle axis (increment angle 30°).
  • OGV® Ring profile maximizing contact surface with the nut for a longer lifetime.
  • Forged in Chrome Vanadium steel.
  • Short wrenches for better accessibility in confined spaces.
  • High chrome finish.
  • Symbol: E110106
  • Rozmiar [mm]: 10.00
  • L [mm]: 96.00
  • Rodzaj: stal chromowo-wanadowa
  • Typ: oczkowo-płaskie krótkie
  • Opis: metryczne

Download

oczkowe_plaskiekrotkie_metryczne klucze-oczkowo-plaskie-krotkie-mm-pl.pdf (64.46KB)
